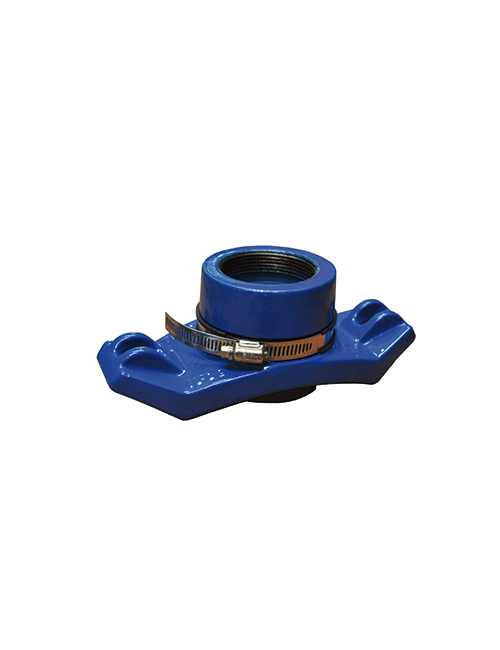

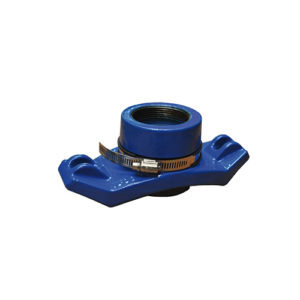

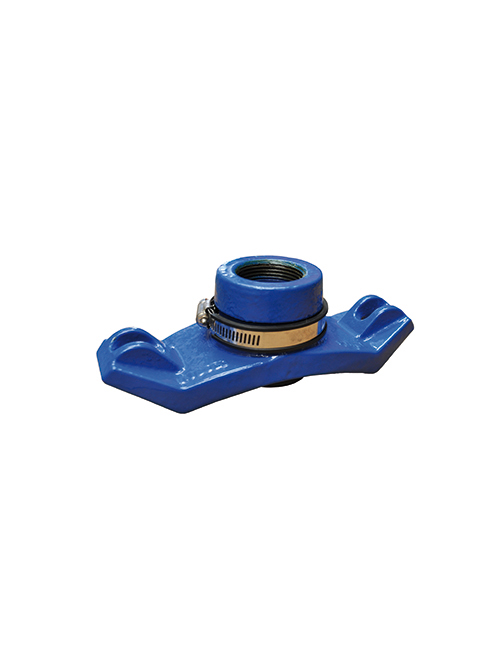

Universal intake for underground pressure pipe ‘ACMO-EASY’

PN 16
DN 3/4”÷2”
FIG. 8000

BODY  EN GJS-4000-15 + EPOXY EN 1563
PROTECTION RIBBON NBR EN 681-1
STRIP X5CrNi18-10 AISI304 STAINLESS STEEL EN 10088-1
RUBBER SEAL NBR ATOXIC EN 681-1
RODS AND NUTS X5CrNi18-10 AISI304 STAINLESS STEEL EN 10088-1

COATED INSIDE-OUTSIDE
(FBE) EPOXY 250 MICRONS

D.M. NR.174 – HEALTH DEPARTMENT (I)

WATER

EN 12266-1 (ISO 5208) PRESSURE TESTS

INTERCEPTION BLADE IN STAINLESS STEEL AISI 304
