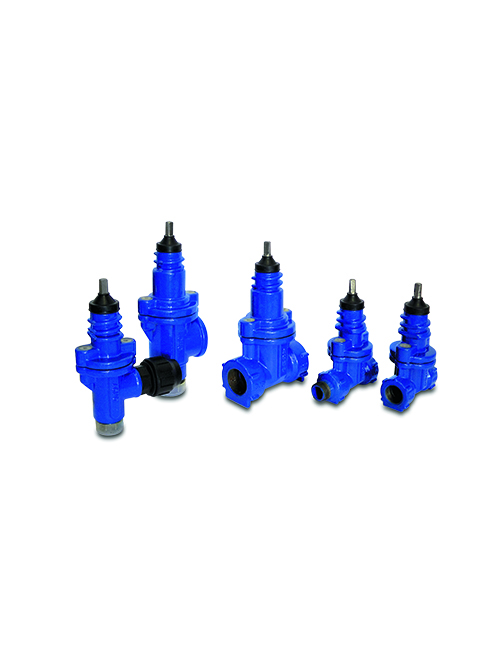

Service valves for house connection

PN 16
DN 3/4”÷2”
FIG. 21/S – 21/D

BODY EN 1563 EN GJS-400-15 DUCTILE IRON
COVER EN 1563 EN GJS-400-15 DUCTILE IRON
OBTURATOR EN 12164 CuZn40Pb2 BRASS + NBR70
STEM EN 10088-1 X20Cr13 AISI420 STAINLESS STEEL

COATED INSIDE-OUTSIDE
(FBE) EPOXY 250 MICRONS

D.M. NR.174 – HEALTH DEPARTMENT (I)

WATER

EN 12266-1 (ISO 5208) PRESSURE TESTS

ACCESSORY FOR UNDERGROUND INSTALLATION
FIXED STREET BOX – ADJUSTING STREET BOX
CARRE DE MANOEUVRE
HANDWHEEL WITH P.E. FITTING
