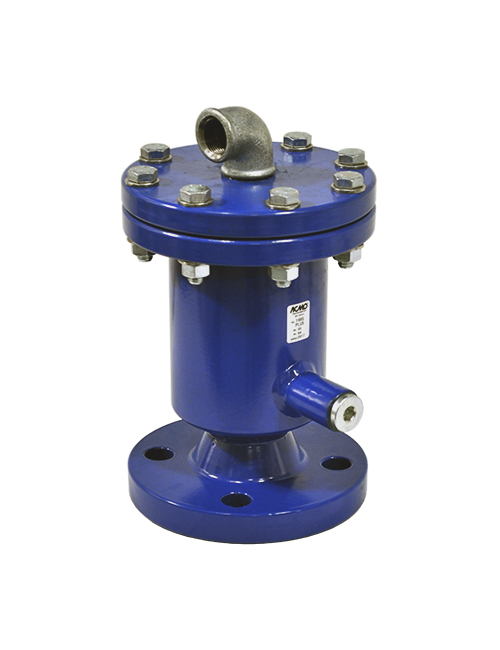

High pressure air valve type “HP”

High pressure air valve type “HP”

Code: k02h – 193-198S

Description

EN 1074-1 VALVES FOR WATER SUPPLY
EN 1074-4 AIR RELIEF VALVES
EN 1092-1 (ISO 7005-2) DRILLING FLANGES

PN 100
DN 25÷100
FIG. 193/100-198S/100

BODY S355JR CARBON STEEL EN 10025
COVER S355JR CARBON STEEL EN 10025
FLOAT POLYPROPYLENE

COATED INSIDE-OUTSIDE
EPOXY 250 MICRONS (FBE)

D.M. NR.174 – HEALTH DEPARTMENT (I)

WATER

EN 12266-1 (ISO 5208) PRESSURE TESTS
