EN 1074-1 VALVES FOR WATER SUPPLY
EN 1074-4 AIR RELIEF VALVES
EN 1092-2 (ISO 7005-2) DRILLING FLANGES
PN 16
DN 3/4”÷1” – 40÷100
FIG. 180-180F
BODY BRASS CuZn40Pb2 EN 12164
COVER BRASS CuZn40Pb2 EN 12164
UPPER ORIFICE BRASS CuZn40Pb2 EN 12164
FLOAT PTS-THERMOFLEX
SPRAY BRAKER DEVICE POLYPROPYLENE
COATED INSIDE-OUTSIDE
(FBE) EPOXY 250 MICRONS
MULTIDRILLED FLANGE RAL 5010
D.M. NR.174 – HEALTH DEPARTMENT (I)
WATER
EN 12266-1 (ISO 5208) PRESSURE TESTS

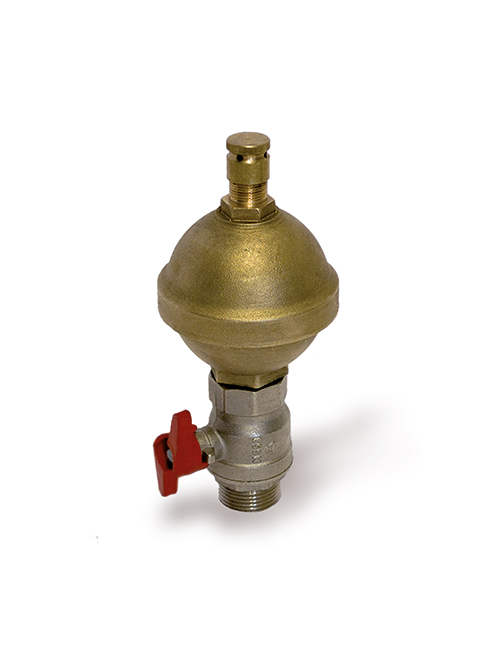

FIG. 180 WITH BALL VALVE
FIG. 180F WITH BALL VALVE AND MULTIDRILLED FLANGE
