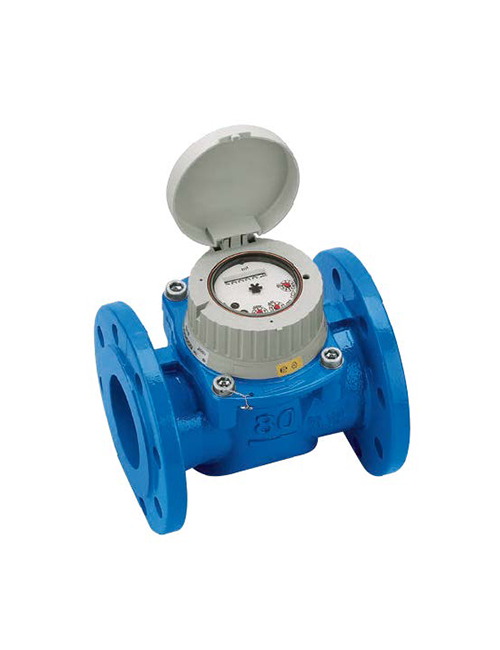

Water meters for potable water type woltman

PN 10-16
DN 50÷500
FIG. 700-700A-700R-700AR

BODY EN GJS-400-15 DUCTILE IRON EN 1563
WATER-METER GROUP EN GJS-400-15 DUCTILE IRON EN 1563
WHIRLING ARM ABS
SCREWS AND WASHERS A2-70 STAINLESS STEEL EN 10088-1

COATED INSIDE-OUTSIDE
(FBE) EPOXY 250 MICRONS

D.M. NR.174 – HEALTH DEPARTMENT (I)
ACCORDING TO CLASS “B” – CEE N° 75/33

WATER

EN 12266-1 (ISO 5208) PRESSURE TESTS

FIG.700R-700AR IMPULSE EMITTING DEVICE
INSTALLATION HORIZONTAL / VERTICAL
