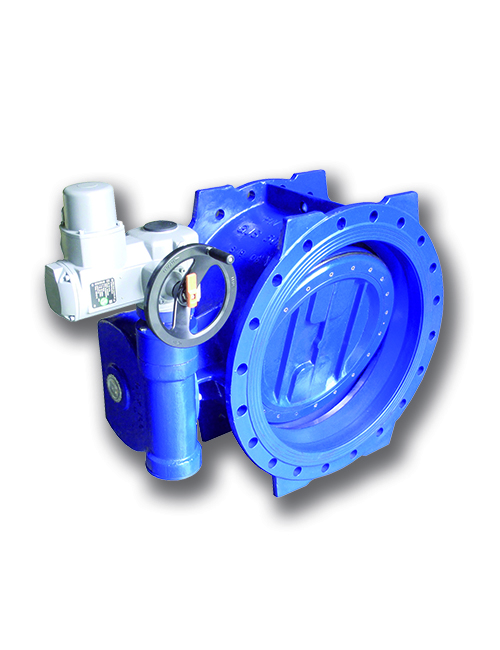

Double eccentric valves used for their strength and resistance even at high pressure. Made in high quality ductile cast iron with stainless steel shafts and a welded-on seat ring.
EN 593 METALLIC BUTTERFLY VALVES
EN 1074-1 VALVES FOR WATER SUPPLY
EN 1074-2 ISOLATING VALVES
EN 558 S14 (ISO 5752) / EN 558 S13 (BS 5155) FACE TO FACE
EN 1092-2 (ISO 7005-2) ANSI B16.5 CI.150 DRILLING FLANGES
PN 10-16-25-40
DN 100÷3000
FIG. 201-201A-202-203
BODY EN GJS-400-15 (OPT. EN GJS-500-7) EN 1563 (ISO 945)
DISC EN GJS-400-15 (OPT. EN GJS-500-7) EN 1563 (ISO 945)
DISC SEAT EPDM (OPT. NBR) EN 681-1 (ISO 4633 – ISO 9631)
BODY SEAT STAINLESS STEEL EN 10088-1
STEM AISI420 EN 10088-3 (OPT. AISI304-AISI316-AISI431-DUPLEX)
BUSHING G-CuSn6Zn4Pb2-B BRONZE EN 1982 (ISO 2624 – ISO 6509)
COATED INSIDE-OUTSIDE
(FBE) EPOXY 300 MICRONS
D.M. NR.174 – HEALTH DEPARTMENT (I)
ICIM – PRODUCT CERTIFICATE
FIG.201-201A DN150÷1600
FIG.202 (S14) DN100÷1600
FIG.203 (S14) DN100÷2200
WRAS
FIG.201-201A DN150÷1400
WATER
EN 12266-1 (ISO 5208) PRESSURE TES
GRADE “A”
ELECTRIC ACTUATOR
OIL-DYNAMIC ACTUATOR
PNEUMATIC ACTUATOR
WITH OVERSPEED SYSTEM
